Condition:
New
Spindle Taper:
BT50
No. of Spindles:
Single
Type:
VERTICAL
Dimension(L*W*H):
3800*3000*2650
Weight (T):
10 T
Table Size (mm):
1500x700
CNC Control System:
GSK, FANUC, KND, Siemens
Number of Axes:
3, 4
Table Travel (X) (mm):
1300
Table Travel (Y) (mm):
700
Table Travel (Z) (mm):
700
Positioning Accuracy (mm):
0.01
Repeatability (X/Y/Z) (mm):
0.004
Range of Spindle Speed(r.p.m):
60 - 8000 r.p.m
Spindle Motor Power(kW):
15
Max. Table Load(kg):
1000 kg
Feed Speed(mm/min):
10 - 10000 mm/min
Rapid Feed Speed(m/min):
36/36/20
Min. Time of Tool Change(s):
2
Tool Magazine Capacity:
24
Key Selling Points:
Automatic
Warranty:
2 Year
Voltage:
380V
Applicable Industries:
Hotels
Showroom Location:
Egypt, Turkey, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Sri Lanka, Romania, Bangladesh, Sou
Marketing Type:
New Product 2021
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Bearing
T slot:
5-18*120mm
X/Y/Z axis rapid feed:
36/36/20m/min
Tool length:
250/350mm
Spindle nose to table surface:
180-780mm
Machine Type:

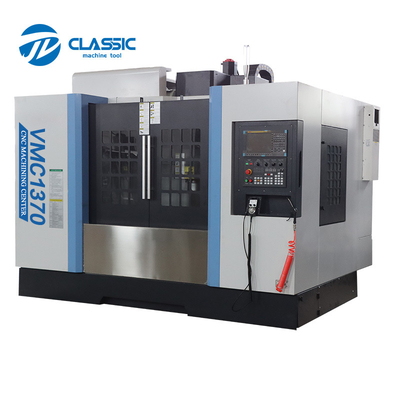

CNC Vertical Machining Center
Product name:
3-axis Vertical Cnc Machining Center
Application:
General Machinery Processing
Product type:
Cnc 3 Axis Machine
Name:
Vertical Machine Center CNC Machine
Processing:
Metal Cutting Cnc Milling Machine
